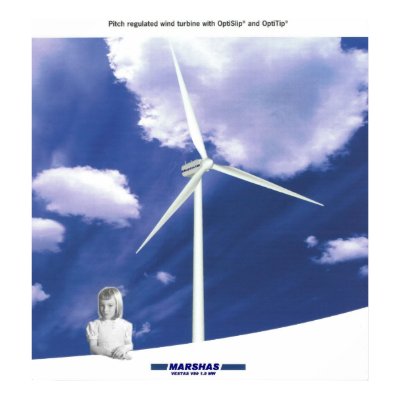

VESTAS V-80 wind turbine Poster
by solarmike
This is a 1.8 Million Watt wind turbine
V80-1.8 MW
The cornerstone of our 2 MW class is the well-proven V80-2.0 MW wind turbine which is the closest we come to a mainstream turbine for medium and high wind sites. This competitive pitch regulated model with OptiSpeed® is available in many different tower heights, from 60-100 metres. The V80 is also available in a 1.8 MW OptiSlip® version for the US market.
Technical specifications
Rotor
Diameter: 80 m
Swept area: 5,027 m2
Speed revolution: 15.5/16.8 rpm
Number of blades: 3
Power regulation: Pitch/OptiSlip®
Air brake: Three separate pitch settings
Tower
Hub height (approx.): 60 - 67 - 78m
Operational data
Cut-in wind speed: 4 m/s
Nominal wind speed: 16 m/s
Stop wind speed: 25 m/s
Generator
Type: Asynchronous with OptiSlip®
Nominal output: 1.8 MW
Operational data: 60 Hz
690 V
1,800-1,980 rpm
Gearbox
Type: Planet/parallel gear
Control
Type: Microprocessor - based control of all turbine fuctions with the option of remote monitoring.
OptiSlip® output regulation and OptiTip® ptich regulation of the blades.
Weight
60 m 67 m 78 m
Nacelle: 138,915 lbs 138,915 lbs 138,915 lbs
Rotor: 77,175 lbs 77,175 lbs 77,175 lbs
www.vestas.com
Loading High Resolution...
Loading High Resolution...
Loading High Resolution...
Loading High Resolution...
Loading High Resolution...
Loading High Resolution...
Loading High Resolution...
Loading High Resolution...
Loading High Resolution...
V80-1.8 MW
The cornerstone of our 2 MW class is the well-proven V80-2.0 MW wind turbine which is the closest we come to a mainstream turbine for medium and high wind sites. This competitive pitch regulated model with OptiSpeed® is available in many different tower heights, from 60-100 metres. The V80 is also available in a 1.8 MW OptiSlip® version for the US market.
Technical specifications
Rotor
Diameter: 80 m
Swept area: 5,027 m2
Speed revolution: 15.5/16.8 rpm
Number of blades: 3
Power regulation: Pitch/OptiSlip®
Air brake: Three separate pitch settings
Tower
Hub height (approx.): 60 - 67 - 78m
Operational data
Cut-in wind speed: 4 m/s
Nominal wind speed: 16 m/s
Stop wind speed: 25 m/s
Generator
Type: Asynchronous with OptiSlip®
Nominal output: 1.8 MW
Operational data: 60 Hz
690 V
1,800-1,980 rpm
Gearbox
Type: Planet/parallel gear
Control
Type: Microprocessor - based control of all turbine fuctions with the option of remote monitoring.
OptiSlip® output regulation and OptiTip® ptich regulation of the blades.
Weight
60 m 67 m 78 m
Nacelle: 138,915 lbs 138,915 lbs 138,915 lbs
Rotor: 77,175 lbs 77,175 lbs 77,175 lbs
www.vestas.com
created by solarmike (1/9/2006 11:51 PM)
