How Do I Create a Design Suitable for Zazzle Embroidery?

Embroidery offers a premium, long-lasting way to customize apparel and accessories, but it requires different design considerations than printing. Use this guide to create high-quality embroidery designs that stitch cleanly and look professional.



1. Why Embroidery Is Different

Embroidery uses thread instead of ink. That means:

  • It works best on thicker fabrics (e.g., hats, polos, sweatshirts).
  • It has limited detail resolution (small text and fine lines don’t render well).
  • It doesn’t support full gradients, transparencies, or photographic effects. However, we can do simple gradients; generally 2 to 3 colors, on bolder designs.
  • Each design requires a one-time digitization process to convert your image into a stitch file.
  • Digitized files are product-specific and cannot be reused across different items. (e.g., a file digitized for a shirt cannot be reused for a hat). A separate digitization fee applies for each product-specific version.
  • Digitized embroidery designs cannot be resized.



2. Embroidery Design Checklist

Element Requirement / Best Practice
Text Height At least 0.25″ (6.35 mm) tall. For best results, use Zazzle Embroidery Fonts.
Line Thickness At least 0.05″ (1.27 mm) or 4 points wide. Thicker lines are always better than thin.
Design Resolution 150–300 DPI (PPI).
Image Size for Hats Minimum 1200×675 px recommended. Specific dimensions are often tied to product design areas.
File Formats EPS, PDF, PNG, or JPEG (in that order).
Color Mode RGB (sRGB color profile).
Thread Colors Up to 15 thread colors per design, selected from Zazzle’s Embroidery Thread Palette. Only 6 colors may be used per design.
Design Style Solid colors only; simple gradients (2 to 3 colors, on bolder/larger designs only), no photos, shadows, or transparency. Use crisp, thick outlines.
Small Details Avoid areas of color smaller than 0.25" x 0.25" and multiple colors in very small areas.
Design Area Designs are tied to specific apparel items and their defined design areas. One image per design area.
Background Keep the background minimal; crop tightly to the design or use a transparent background.
Edges Use smooth edges.

Tip: Avoid extremely fine details, small text, or overlapping elements. These often don't translate well to thread.



3. Preparing and Uploading Your File

  • Save your design as an EPS, PDF, PNG, or JPEG.
  • Remove unnecessary whitespace; crop tightly to the design.
  • Use a transparent background (PNG).
  • Ensure your image is 150–300 DPI (PPI).
  • Ensure the file is high-quality, crisp, and not pixelated.



4. Thread Colors

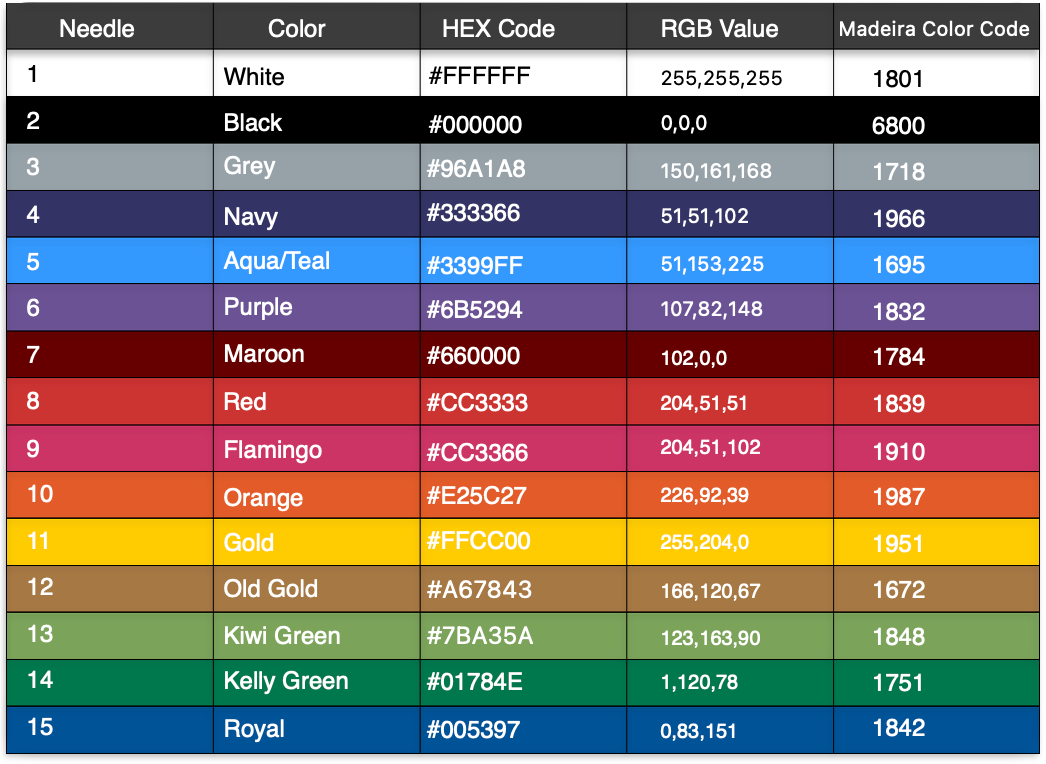

Zazzle supports up to 15 distinct embroidery thread colors, selected from a standardized palette. However, only 6 thread colors may be used in a single embroidery design. Use solid fills and avoid any blending or fading effects; thread can't replicate digital gradients or photographs. Complex pattern fills should also be avoided. See below for the 15 supported thread colors:

5. Stitch Conversion & Pricing

How Conversion Works: Your uploaded design is professionally digitized by Zazzle to create a stitch-ready embroidery file. This includes:

  • Defining outlines and fill areas.
  • Assigning thread colors from the Zazzle palette.
  • Optimizing stitch type and density.
  • Note: There is a one-time fee for this digitization process for each new design.

Pricing:

  • Embroidery costs $5 per 1,000 stitches, rounded up.
  • Stitch count affects both price and production time.
  • Designs over 50,000 stitches may incur higher costs.

Tips to Lower Cost:

  • Crop your design tightly to reduce stitch area.
  • Use bold, simple elements.
  • Use fewer thread colors (if possible, though 15 is the maximum, using fewer will not reduce digitization cost as much as stitch count).



6. Embroidery Production Workflow

  1. Upload your design following the specs above
  2. Zazzle digitizes the artwork into a stitch file
  3. Preview your mockup on the selected product
  4. Order



7. Design Dos & Don’ts

✅ Do 🚫 Don’t
Use Zazzle Embroidery fonts Use complex fills (e.g., pattern fills)
Use clear line art Include fine details
Ensure lines are 4 points (0.05”) or wider Use transparent elements
Use crisp, thick outlines Use photography or photorealistic images
Choose colors only from the Embroidery Thread Palette Use areas of color smaller than 0.25” x 0.25”
Use solid colors only Use multiple colors in very small areas
Keep background minimal and crop tightly Use lines narrower than 2 points
Use smooth edges Use gradients
Provide images at 150 PPI or higher Upload low-resolution or pixelated images

8. Example Design Traits

Good Design:

  • Bold fonts, simple shapes
  • Solid color fills with strong contrast
  • Clean edges and ample spacing

Poor Design:

  • Tiny text or fine lines
  • Complex gradients or photographic detail
  • Crowded or overly intricate layouts

Advanced:

Changing Embroidery Design Colors

Zazzle offers flexibility in managing the thread colors of your embroidery designs. This is particularly important if you want to create multiple color variations of your design.

Changing Colors on Any Design

You can adjust the thread colors of any converted embroidery design using the Zazzle Embroidery Design Tool or through My Images. The "Change colors" feature lets you pick directly from Zazzle's actual thread color palette. This is a great way to create and save multiple different color versions of your embroidery design without re-uploading the original image.
